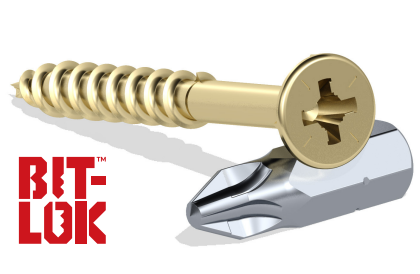

Phillips Drive System: BIT-LOK™
A drive system that truly locks the bit to the screw
BIT-LOK™ patent pending design provides inter-locking features on either the drive or removal wall or both. When driving the lock engages and there is no longer force required to keep the bit in the recess, in fact the system pulls the driver toward the work.
DRIVER SIZES
PH2
SCREW SIZES
#10
Features
Patent pending inter-locking features for driving direction
-Once started, no force is required to keep the bit in the recess
-Useful in overhead or ladder situations where it is difficult to apply pressure
-Useful in hard-to-reach areas like cabinets and enclosures
-Reduce chance of material damage from cam-out
-Reduces effort and chance for injury when driving many screws
Locking features can also be used in the removal direction
-Reduce chance of cam-out during disassembly and service
-Eliminate the need to drill out
Recess compatibility
-Standard PHILLIPS® and POZIDRIV®
Technology could be applied to other drive styles
-Allows for compatibility with existing drivers
Combine with benefits of other Phillips Screw Company drive systems such as MORTORQ® or MORTOR® SUPER
This information was provided entirely by The Phillips Screw Company
