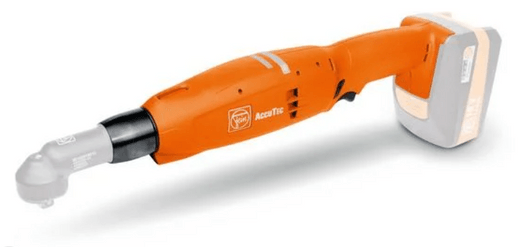

FEIN AccuTec ASW Precision Cordless Angle Head Screwdriver

FEIN AccuTec ASW Precision Cordless Angle Head Screwdriver

The high-performance FEIN AccuTec ASW 18 right angled offset torque driver makes fastening for torques up to 60 Nm more reliable and efficient. Not only are the maximum torque and speed values impressive, but both values can be adjusted as needed over a large range, which ensures maximum flexibility.
  • Process-capable according to ISO 5393, VDI/VDE 2647, CmK value > 1.67 at ± 10% (based on 6 Sigma).
  • For soft and hard screwdriving applications.
  • Programmable parameters (up to 5 increments): speed, direction of rotation, angle of rotation, torque threshold, time.
  • Adjustable error criteria prevent manipulation of the screwdriving process.
  • Infinitely variable speed setting.
  • Forward / reverse running can be parameterized.
  • Brushless FEIN PowerDrive motor with 30% greater efficiency and longer service life.
  • High speed stability for constant work progress.
  • Full resilience in continuous operation up to maximum drive torque.
  • Low-fatigue working with slim grip and good balance.
  • Optimized air guide: Air does not blow onto hand or in face.
  • Extra-large, bright signal unit (OK / NOK).
  • Optimal screwdriving site illumination.
  • Wear-free accelerator switch.
  • Tool color-coded via coding rings.
  • Attachment option for hanger (balancer).
  • Integrated screw counter for setting maintenance interval.
  • Tool with storage battery charging status indicator (can be set).
  • MultiVolt-interface. Cordless tool can be used with all FEIN li-ion batteries (12-18 V).
  • Angle head can be adjusted in 30° steps.
  • 18V
  • 2.65 lbs



    Model Part Number Description
    ASW 18-6 PC 71126660090 1.2-6Nm, 100-1100rpm, 12v-18V
    ASW 18-12 PC 71126860090 3-12Nm, 75-850rpm, 12v-18v
    ASW 18-18 PC 71127060090 6-18Nm, 65-765rpm 12v-18v
    ASW 18-30 PC 71126260090 12-30Nm, 30-357rpm, 18v
    ASW 18-45 PC 71126360090 20-45Nm, 25-264rpm, 18v
    ASW 18-60 PC 71126460090 25-60Nm, 20-196rpm, 18v
    ASW 18-6 PC Kit w/ 3Ah battery 69908117112 1.2-6Nm, 100-1100rpm, 12v-18V w/ 1 Charger, 2 3Ah Batteries, and 1 Torque Key
    ASW 18-12 PC Kit w/ 3Ah battery 69908117113 3-12Nm, 75-850rpm, 12v-18v w/ 1 Charger, 2 3Ah Batteries, and 1 Torque Key
    ASW 18-18 PC Kit w/ 3Ah battery 69908117114 6-18Nm, 65-765rpm 12v-18v w/ 1 Charger, 2 3Ah Batteries, and 1 Torque Key
    ASW 18-30 PC Kit w/ 3Ah battery 69908117115 12-30Nm, 30-357rpm, 18v w/ 1 Charger, 2 3Ah Batteries, and 1 Torque Key
    ASW 18-45 PC Kit w/ 3Ah battery 69908117116 20-45Nm, 25-264rpm, 18v w/ 1 Charger, 2 3Ah Batteries, and 1 Torque Key
    ASW 18-60 PC Kit w/ 3Ah battery 69908117117 25-60Nm, 20-196rpm, 18v w/ 1 Charger, 2 3Ah Batteries, and 1 Torque Key
    ASW 18-6 PC Kit w/ 6Ah battery 69908117106 1.2-6Nm, 100-1100rpm, 12v-18V w/ 1 Charger, 2 6Ah Batteries, and 1 Torque Key
    ASW 18-12 PC Kit w/ 6Ah battery 69908117107 3-12Nm, 75-850rpm, 12v-18v w/ 1 Charger, 2 6Ah Batteries, and 1 Torque Key
    ASW 18-18 PC Kit w/ 6Ah battery 69908117108 6-18Nm, 65-765rpm 12v-18v w/ 1 Charger, 2 6Ah Batteries, and 1 Torque Key
    ASW 18-30 PC Kit w/ 6Ah battery 69908117109 12-30Nm, 30-357rpm, 18v w/ 1 Charger, 2 6Ah Batteries, and 1 Torque Key
    ASW 18-45 PC Kit w/ 6Ah battery 69908117110 20-45Nm, 25-264rpm, 18v w/1 Charger, 2 6Ah Batteries, and 1 Torque Key
    ASW 18-60 PC Kit w/ 6Ah battery 69908117111 25-60Nm, 20-196rpm, 18v w/ 1 Charger, 2 6Ah Batteries, and 1 Torque Key



    Head Options:

    Model Part Number Compatible with models
    Angle Head up to 12Nm, 1/4" QuickIn 90102012010 (ASW 18-6, 18-12)
    Angle Head up to 12Nm, 3/8" ext. sq. 90102013010 (ASW 18-6, 18-12)
    Angle Head up to 12Nm, 1/4" ext. sq. 90102014010 (ASW 18-6, 18-12)
    Angle Head up to 45Nm, 3/8" ext. sq. 90102015020 (ASW 18-30, 18-45)
    Angle Head up to 60Nm, 1/2" ext. sq. 90102016020 (ASW 18-60)
    Angle Head up to 18Nm, 3/8" ext. sq. 90102017020 (ASW 18-18)
    Angle Head up to 12Nm, 3/8" ext. sq. 90102018020 (ASW 18-6, 18-12)
    Angle Head up to 12Nm, 1/4"ext. sq. 90102019020 (ASW 18-6, 18-12)
    Angle Head up to 12Nm, 1/4" QuickIn 90102021020 (ASW 18-6, 18-12)
    Straight Output Quick-in Hexagon Socket 90106001020 (ASW 18-6)
    Straight Output, 3/8" ext. sq. 90106002020 (ASW 18-6)
