ETA Tool Arms: Tool Holders
ETA Tool Arms: Tool Holders
Any ETA Tool Holder will mount on any ETA Torque Arm. This enables you to repurpose your arm to drive fasteners with different tools or in different attitudes (direction of drive). But please note that while any tool holder on this page will fit on any frame size, it might not always be practical due to weight limitations of the arm or the torque output of your tool. Consult with us, referring to your arm’s Serial Number, if you aren’t sure about repurposing your ETA arm for your new application. The Serial Number is located on the Forearm’s nameplate.

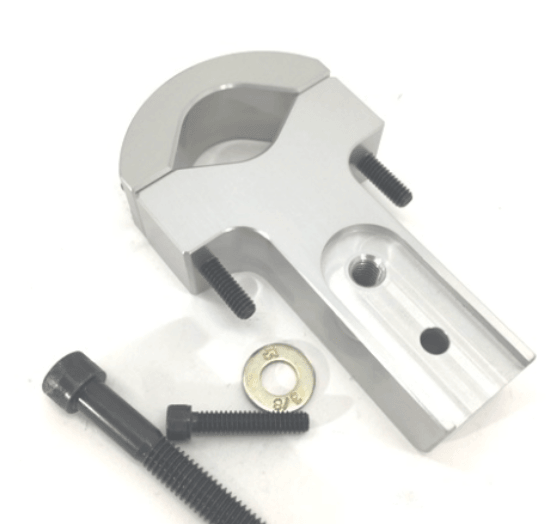

TOOL HOLDER MOUNTING DETAILS; At the tool end of every standard ETA Forearm is a through hole with 1/4 NPT threads top and bottom and also a threaded 1/4-20 blind hole on the bottom edge, 1.0″ on center behind the NPT hole. All of our holders have a 1/8″ deep pocket that the Forearm sits into. A 3/8″ cap screw with a hardened flat washer drops down through the 1/4 NPT hole in the Forearm and threads into the holder body. A 1/4-20 cap screw comes up through the holder into the blind hole in the bottom of the Forearm. At any time the holder can be removed and replaced with a different holder. Or air fittings for nipple mounting an inline air tool can be used instead of a holder.
With arm models configured on this site, the weight of the tool holder is already calculated into the arm’s maximum tooling capacity. So the MAX TOOL WEIGHT listed for each model is the amount of weight available for your air or electric tool with 4 ft of cable, sockets, bits, etc. If you exceed the maximum weight or your line air pressure is much under 100 psi (6.9 Bar) , the arm will not float properly or even at all. If the holder is changed, the available weight capacity for your driver tool may change, depending on the weight of the new tool holder. To help you determine this, weights are listed in each tool holder’s description.
UV Universal Vertical
For fastening Vertically with any inline tool from 1-⅛″ (28.6mm) to 2.0″ (50.8mm) diameter. UV is 1.0" thick for stability. Weight 0.8 lbs (0.4 Kg)
TUV Thin Universal Vertical
For fastening Vertically with any inline tool. Identical to UV except it is only 0.540” (13.7mm) thick for tools with less clamping area. Weight 0.5 lbs (0.2 Kg)
PT Pistol Tilt
For pistol or Inline tools held in a basic horizontal attitude. Allows the tool to tilt +/- 20 degrees from the horizontal plane, and spin sideways for axial alignment. Weight 1.9 lbs (0.9 Kg)
SRA Simple Right Angle
For right angle tools, fastening horizontally with the handle upward. Allows tool to swing freely 280 degrees for easy axial alignment with your fasteners. Weight 1.5 lbs (0.7 Kg)
PS Pistol Spin
For pistol or Inline tool bodies held on the horizontal plane while allowing them to spin sideways for axial alignment. Weight 1.5 lbs (0.7 Kg)
RAV Right Angle Vertical
For Right Angle tools driving fasteners downward or upward. Set Screw allows 12 different handle positions. Weight 1.6 lbs (0.7 Kg)
RAH Right Angle Horizontal
For Right Angle tools driving fasteners horizontally. Set screw allows 12 different handle positions. Weight 2.3 lbs (1.0 Kg)
RAHV Right Angle Horizontal and Vertical
For driving vertical fasteners and horizontal fasteners in the same work zone using the same right angle tool. Set screw allows 12 different handle positions. Weight 3.75 lbs (1.7 Kg)
IPHV Inline or Pistol Horizontal and Vertical
For driving vertical fasteners and horizontal fasteners in the same work zone using the same Inline or Pistol tool. Weight 3.2 lbs (1.5 Kg)
FR Flip and Rotate
2 axis swivel for Inline or Pistol tools fastening in any direction without torque reaction. Weight 1.7 lbs (0.8 Kg)
QXP For IR QX DC Pistol
Handle and Comfort Trigger spin 360 degrees for improved ergonomics. Works with QXC, QXX and QXN models. Makes QX Pistol work like an inline for vertical fastening. Weight 4.4 lbs (2 Kg)
ST61 For Atlas Copco DC Inline Tools
For Vertical Fastening with Reaction Bar #420 234 02 typically included with applicable Atlas tools. Weight 1.0 lbs (0.45 Kg)
ASG SP2500 Adapter
ETA adapter for Vertical Fastening with X-PAQ Tools. The mounting loop #ASG-AC2500-TML, purchased from ASG, fits directly onto this adapter. Weight 0.6 lbs (0.3 Kg)
NB / NBBR Needle Bearing / Needle Bearing with Brake
For Inline, Inline offset, Crows Foot and Right Angle Tools; enabling them to rotate in place. Weight: NB = 2.6 lbs (1.2 Kg) NBBR = 3.6 lbs (1.6 Kg)
QE4 / QE6 / QE8
For Vertical Fastening with IR Inline DC Tools that have 2-bolt Flanges QE4 Flange holes on 55.6mm (2.19") Centers QE6 Flange holes on 66.7mm (2.63") Centers QE8 Flange holes on 76.2mm (3.0") Centers Weight 0.8 lbs (0.4 Kg)
EXUV Extended Universal Vertical
For fastening Vertically with any inline tool. Similar to UV-TH with 3″ of additional reach. Weight 1.3 lbs (0.6 Kg)
FRS Flip and Rotate with Stops
The same mechanics as the FR with the addition of stop plates on both axis allowing adjustment of rotational limits. Weight 2.1 lbs (1 Kg)
LDUV Large Diameter Universal Vertical
For larger tools and other large components 2.0″ (50.8mm) to 4.0″ (101.6mm) in diameter. Weight 1.3 lbs (0.6 Kg)
SW Swivel Tool Holder
Use this holder for inline air tools only. For fastening on angles off of vertical. Tool is mounted by 1/4 npt tool connection. SW-TH is included on model PA506-SW. SW-TH weighs 1.1 lbs (0.5 Kg)
PA___ 1/4" NPT Hardened Steel Nipple Tool Connection
PA-Series arms without a tool holder suffix (PA306, PA315, PA506, PA806 & PA815) come with a ¼”npt male high strength air tool connection that serves as the inline tool mount. This connection is supplied with shop air by an elbow on top of the forearm connected to our red braided polyurethane hose with reusable swivel fittings.
N No Tool Holder
Designates a basic untooled EL-Series arm without tool holder or tool supply air hose. Our “- N “ models can be paired with standard ETA tool holders on these pages, special tool holders, customer’s fixtures or test equipment.
