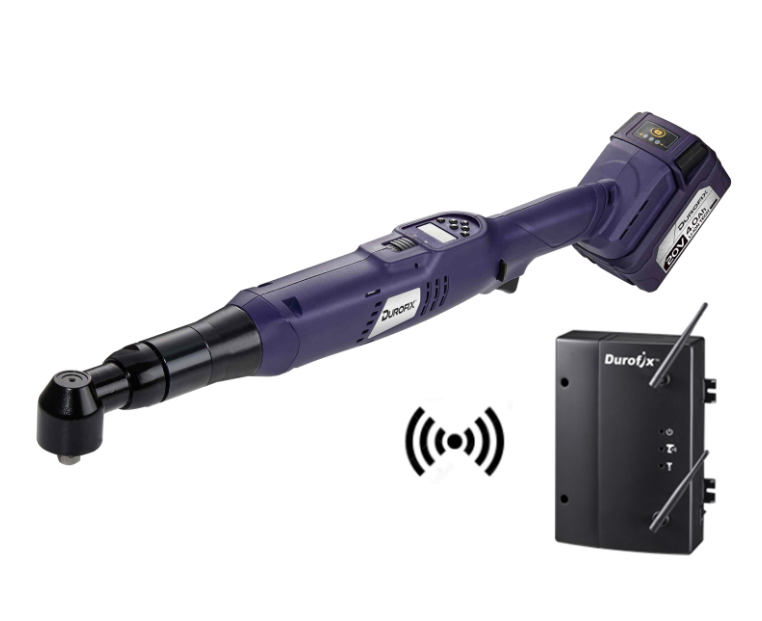

Durofix: 20V Cordless Transducerized Torque Angle Precision Tool
Pro-Assembly Transducerized 20V Wireless Precision Tool, RV2053-xx
Available Options:
RV2053-WR45: 8 to 45 Nm
RV2053-WR80: 12 to 80 Nm
RV2053-WR120: 40 to 120 Nm
Pro-Assembly series is designed to precision assembly process on work floor. With precision torque setting, auto shut-off features, and wireless features & mobile app (depends on models), the Pro-Assembly series is the best choice for professional manufacturing.
Features:
* 1/2″ Square Drive Transducerized Angle Nut Runner
* Real-Time Feedback with Advanced Transducer Sensing & Control
* Electro-Pulse System (EPS) Technologies Reduce Reaction Force
* OLED Display for Instant Achieved Torque, Angle, Batch Count information.
* Control Panel for Fast & Precise Torque Setting from 8 Nm to 120 Nm
* High Precision & Accuracy for Mass Production Applications – Cmk (6 Sigma) > 1.67 (+/- 10%) complied to ISO5393,
* Full Control: 8 user configurable tightening strategies (Target Torque, Target Angle, Free Speed Setting, Shift-Down Torque / Shift-Down Speed, Clockwise / Anti-Clockwise Tightening)
* USB port for program update and joint rundown data download
* Dual Mode Wireless Data Comm. : Bluetooth and Zigbee, Collect All Fastening Data in Process Through Mobile App or PLC Wireless Receiver
* Joint Status indicator : LED & Buzzer
Specifications:
* Drive Size: 1/2 inch square
* OLED Display
* Sensing Technologies: Transducerized Sensing
* Dual Mode Built-in Wireless Functions (Bluetooth and Zigbee)
* Voltage: 20V
* Battery: P20 platform
* Transducerized Torque Sensing Accuracy : Cmk (6 sigma): > 1.67 +/- 10%
* USB port: Yes
* Internal rundown data storage: 1,000 sets
* Net Weight: 2.24 kg (4.9 lbs)
* Torque Sensing Accuracy: * Cmk (6 sigma): > 1.67 +/- 10%
* Torque Range & Programmable Speed depends on SKU
RV2053-WR45 : 8 to 45 Nm (20~320 RPM)
RV2053-WR80 : 12 to 80 Nm (20~130 RPM)
RV2053-WR120 : 40 to 120 Nm (20~100 RPM)
Wireless Data Comm. Functions:
* Fine tune torque setting for more precise applications (Max Speed / Duty, Operation cycle & Rotation, Turns, Screw Runtime)
* Record Torque Settings Pattern
* Real-Time monitoring up to 10 tools at jobsite
* Collect all fastening data in assembly process in real time or in bulk
Options:
| RV2053-WR45 | RV2053-WR80 |
RV2053-WR120
|
|
| Torque Range | 8 to 45 Nm (5.9 to 33.2 ft-lbs) |
12 to 80 Nm (8.9 to 59 ft-lbs) |
40 to 120 Nm
(29.5 to 88.5 ft-lbs) |
| Speed | 20 to 320 RPM | 20 to 130 RPM | 20 to 100 RPM |
| Drive | 3/8" Sq. Drive | 1/2" Sq. Drive | 1/2" Sq. Drive |
Wireless Receiver Box (DR002) Features:
- Wireless Connection with Pro-Assembly Tool
- Compatible to plant PLC System
- Remotely Fine tune torque and other settings for more precise applications (Max Speed / Duty, Operation cycle & Rotation, Turns, Screw Runtime)
- Record Torque Settings Pattern
- Real-Time monitoring up to 10 tools at jobsite (PC Monitoring Mode)
- Collect all fastening data in assembly process
Demo Video:
