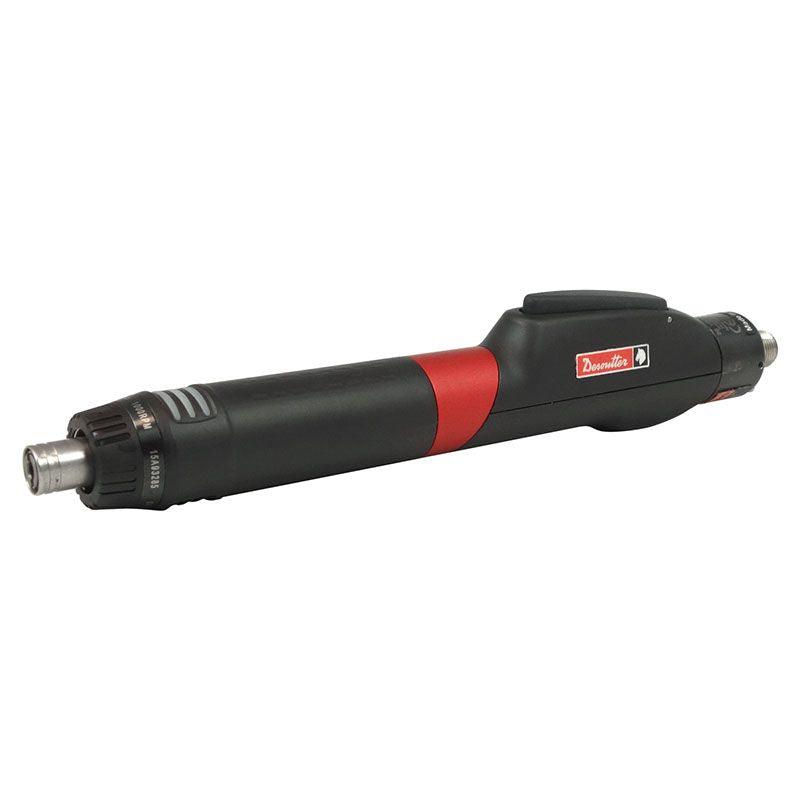

Desoutter: ERXS Nanodrive System
ERXS NanoDriver System
The ERXS range of transducerised in-line screwdrivers is engineered for ultra-low torque applications, where precision and control are critical. Compact and ergonomic, it is ideal for reducing scrap and energy use. Each model features a high-speed brushless motor, an angle sensor and an ultra-precise transducer to ensure consistent quality and accuracy. Whether your goal is to reduce operating costs or increase productivity, the ERXS range meets the demands of modern assembly.
Tool Features
Transducerized tool for Extreme Precision
- 4mm wing shank and half moon bits for the smallest screws
- Safety Critical Repeatability
- Quality control thanks to transducer
Ergonomic Design
- Streamlined contour
- Non-slip Tool Housing
- Push / Lever start
- Highly Flexible Light Weight Industrial Cable
- M20 output thread for easy integration and automatization
Programmable Vacuum System Activation Options
- Built in Accelerometer
- 24 volt Input
Controller Features
Controller is the Desoutter CVIXS
Network Integration
- Any Bus Module Kit (optional)
- Open Protocol/Desoutter Protocol
- Programmability on the Fly
User Set-Up Options
- Joint Learning Capable
- Quick Set-up via KeyPad
- PC Software
Mounting Options
- Din Rail, Wall or Table Top
Flexibility
- 50 different Psets and 15 steps
Models:
| Model | Part Number | Torque Range | Drive | RPM |
| ERXS20 | 6151658740 | 0.06-0.2Nm | 4mm WS-HM | 1000 |
| ERXS50 | 6151658750 | 0.15-0.5Nm | 4mm WS-HM | 1000 |
| ERXS80 | 6151658760 | 0.24-0.8Nm | 4mm WS-HM | 1000 |
