Desoutter: XPB - ONE
Overview

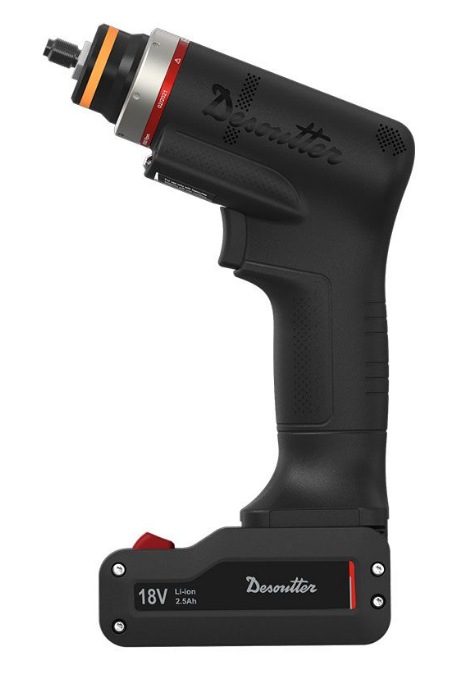

The XPB battery drill gives you complete control and freedom for the most demanding applications. Featuring adjustable speed, bi-step or progressive trigger options, powerful brushless motor, and premium Li-ion battery, the XPB is designed for unrivalled quality, ergonomics and performance. The XPB is the perfect choice for standard drilling, reaming or countersink applications in various materials.
TOOL OVERVIEW
The right tool for the right job
• Several models to adapt to each application
Quality focus
• Constant speed for optimum drilling parameters
Speed change
• Easy speed modification via XPB config software
Tool balance
• Perfect drilling position
Winglet for operator comfort
Low sound levels
• Operator comfort
Tool output options
• 3/8"x24 threaded output toc adapt any accessory (chuck, countersink cages…)
• JT1 output for better run-out accuracy
• Standard Quick Release system to adapt all Desoutter pneumatic QR heads
2 trigger options
• 2 step trigger Perfect for pointing & drilling
• Progressive trigger: the more you press, the faster it rotates
High performance Desoutter battery
• Remove air hose
• Compatible with all Desoutter products
• 2 battery positions for balance & ergonomics
Benefits
-Battery operated to reduce trip hazards, improve operator safety, wellbeing and productivity.
-Easily programmable using Desoutter’s XPB CONFIG software, providing asset management capability to lower your operating costs.
-Brushless motor and long-life gears provide reliability and low maintenance costs.
-Constant drilling speed boosting your productivity whilst reducing your quality costs.
-Battery technology to remove the need for compressed air, reducing operating costs and CO2 emissions for a greener plant.
-Full compatibility with pneumatic quick release heads for a maximum flexibility and quick setup to lower indirect labour cost.
-Lightweight design & two battery positions provides excellent ergonomics ensuring your operators enhanced comfort & productivity.
-Dual speed setting for increased drilling quality, boosting your productivity whilst reducing your cycle time & quality costs.
Models
Each tool comes with 2 trigger options: the progressive trigger and the bi-step trigger.
The bi-step trigger is used for better control over drilling parameters, allowing the trigger to be pulled half way for step one and fully pressed for step 2.
| Progressive Trigger PN | Model | Bi-Step Trigger PN | Model | Output | Chuck Size | RPM |
| 615 176 340 0 | XPB-6000-C6.5-P | 615 176 255 0 | XPB-6000-C6.5 | Keyed chuck | 1/4" | 313-6000 |
| 615 176 339 0 | XPB-6000-P | 615 176 217 0 | XPB-6000 | No check- 3/8" x 24 | N/A | 313-6000 |
| 615 176 343 0 | XPB-6000-QR-P | 615 176 291 0 | XPB-6000-QR | QR | N/A | 313-6000 |
| 615 176 342 0 | XPB-6000-K8-P | 615 176 258 0 | XPB-6000-K8 | Keyless Chuck | 5/16" | 313-6000 |
| 615 176 330 0 | XPB-3000-C6.5-P | 615 176 254 0 | XPB-3000-C6.5 | Keyed chuck | 1/4" | 146-2786 |
| 615 176 329 0 | XPB-3000-P | 615 176 215 0 | XPB-3000 | No check- 3/8" x 24 | N/A | 146-2786 |
| 615 176 333 0 | XPB-3000-QR-P | 615 176 290 0 | XPB-3000-QR | QR | N/A | 146-2786 |
| 615 176 332 0 | XPB-3000-K8-P | 615 176 257 0 | XPB-3000-K8 | Keyless Chuck | 5/16" | 146-2786 |
| 615 176 319 0 | XPB-1000-C6.5-P | 615 176 253 0 | XPB-1000-C6.5 | Keyed chuck | 1/4" | 54-1033 |
| 615 176 318 0 | XPB-1000-P | 615 176 213 0 | XPB-1000 | No check- 3/8" x 24 | N/A | 54-1033 |
| 615 176 323 0 | XPB-1000-QR-P | 615 176 289 0 | XPB-1000-QR | QR | N/A | 54-1033 |
| 615 176 322 0 | XPB-1000-K8-P | 615 176 256 0 | XPB-1000-K8 | Keyless Chuck | 5/16" | 54-1033 |
Available Outputs
