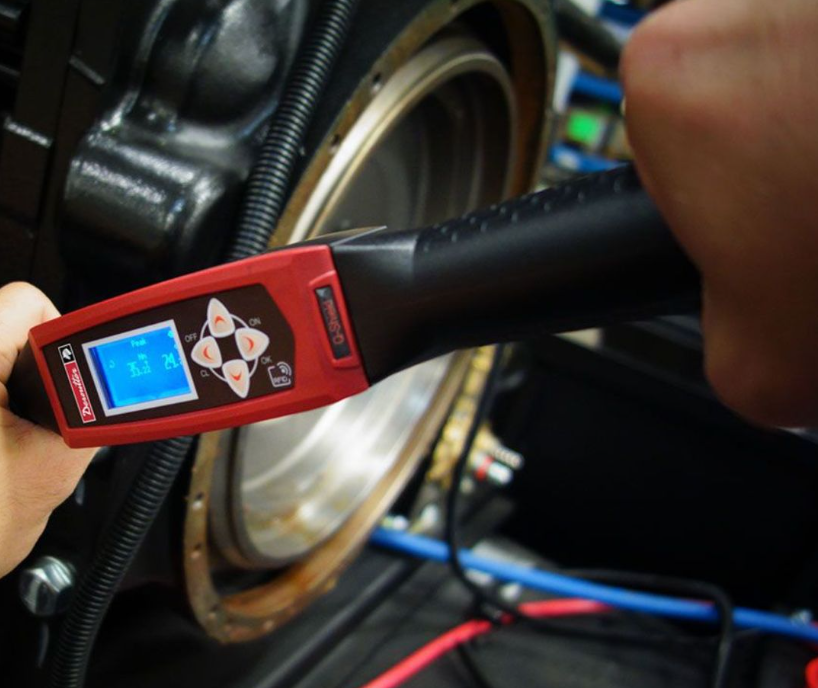

Desoutter: Q-Shield-C-Smart Connected Wrench
Whether your process require manual tightening operation, torque checking or quality check operation, with or without full reporting , the Desoutter Q-Shield digital wrench is designed to to error proof your operation. The robust features a long life Li-ion battery, gyroscope, Yield detection and a double bridge strain gauge to provide full traceability, irrespective of the operator or process.
- 2.4 Ghz and 5 Ghz wireless communication for fast and secure data communication.
- Easily programmable using CVI CONFIG software, providing comprehensive asset management capability to lower your operating costs.
- Direct operator feedback with the LED display and vibration capability reducing your cycle time and potential quality costs.
- RFID pairing between Q-Shield and the controller enabling quick and easy tool replacement and increased uptime.
- Accurate transducer ensuring the quality of each tightening and reducing your potential warranty costs.
Models:
| Model | Part Number | Torque Range | Drive |
| Q-Shield 30-C | 6159352000 | 3-30 Nm | 3/8" Square |
| Q-Shield 150-C | 6159352010 | 15-150 Nm | 1/2" Square |
| Q-Shield 200-C | 6159352020 | 20-200 Nm | 1/2" Square |
| Q-Shield 350-C | 6152210370 | 35-350 Nm | 3/4" Square |
| Q-Shield 400-C | 6159352030 | 40-400 Nm | 3/4" Square |
| Q-Shield 500-C | 6159352040 | 50-500 Nm | 3/4" Square |
| Q-Shield 800-C | 6159352050 | 80-800 Nm | 1" Square |
| Q-Shield 900-C | 6159352060 | 90-900 Nm | 1" Square |
