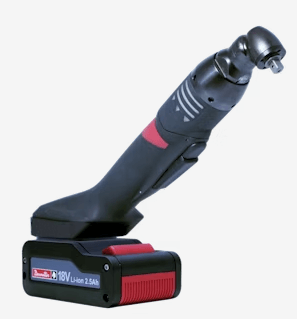

Desoutter: EABS - Wireless Transducerized Battery Tool
For any hard to reach or limited access applications the Desoutter EABS is the perfect tools. Short and light nutrunner with two possible battery positions, the EABS angle head battery tools offer game changing ergonomics. Available with the option of OK/NOK reporting or full traceability, stand-alone mode or full secure wireless communication, transducerized to ensuring repeatability and high quality tightening for your most critical applications. Insulated versions exist in this range.
-
One hand nutrunner offering high accuracy tightening even in joints with limited access.
-
Torque and angle control ensuring the quality of each tightening and reducing your potential warranty costs.
-
RFID pairing between the tool and CONNECT Smart Hub enabling quick and easy tool replacement and increased uptime.
-
Lightweight design and two battery positions provides excellent balance ensuring your operators enhanced comfort and productivity.
-
2.4 Ghz and 5 Ghz wireless communication for fast and secure data communication.
-
Built in transducer, complimented by innovative software, offering multiple tightening possibilities with just one tool.
-
Double strain gauge transducer with high frequency angle sensor for a high accuracy and repeatability to maximise your quality.
-
Use of 18V or 36V battery, with same performance level in speed & torque. EABS can run over 1000 rpm with the lighter 18V battery
Standard Models:
| Model | Part Number | Min torque (Nm) |
Max Torque (Nm)
|
| EABS8-1500-4Q | 6151660880 | 1.5 | 8 |
| EABS8-1500-4S | 6151660870 | 1.5 | 8 |
| EABS12-1100-4Q | 6151660910 | 4 | 12 |
| EABS12-1100-4S | 6151660890 | 4 | 12 |
| EABS12-1100-10S | 6151660900 | 4 | 12 |
| EABS17-800-4Q | 6151660940 | 5 | 17 |
| EABS17-800-4S | 6151660920 | 5 | 17 |
| EABS17-800-10S | 6151660930 | 5 | 17 |
| EABS24-500-4Q | 6151660960 | 10 | 24 |
| EABS24-500-10S | 6151660950 | 10 | 24 |
EABS Insulated Tool
Electrical hazards on high voltage battery production lines are common challenges. The EABS Insulated tools protects the people and the goods against electric shocks or electrocution during tightening operations for torques from 1Nm up to 17Nm. The design of the output module, in particular, is made to combine good accessibility, easy handling and complete safety.
Insulated Models:
| Model | Part Number | Min torque (Nm) |
Max Torque (Nm)
|
| EABS12-10S-INS-QCA-SQ3/8-SQ3/8-R-IH | 8920190058 | 1.5 | 8 |
| EABS12-10S-INS-EXT-SQ3/8-SQ3/8-R-IH-P | 8920190059 | 1.5 | 8 |
| EABS17-10S-INS-QCA-SQ3/8-SQ3/8-R-IH | 8920190060 | 4 | 12 |
| EABS17-10S-INS-EXT-SQ3/8-SQ3/8-R-IH-P | 8920190061 | 4 | 12 |
| EABS24-10S-INS-QCA-SQ3/8-SQ3/8-R-IH | 8920190062 | 5 | 17 |
| EABS24-10S-INS-EXT-SQ3/8-SQ3/8-R-IH-P | 8920190063 | 5 | 17 |
