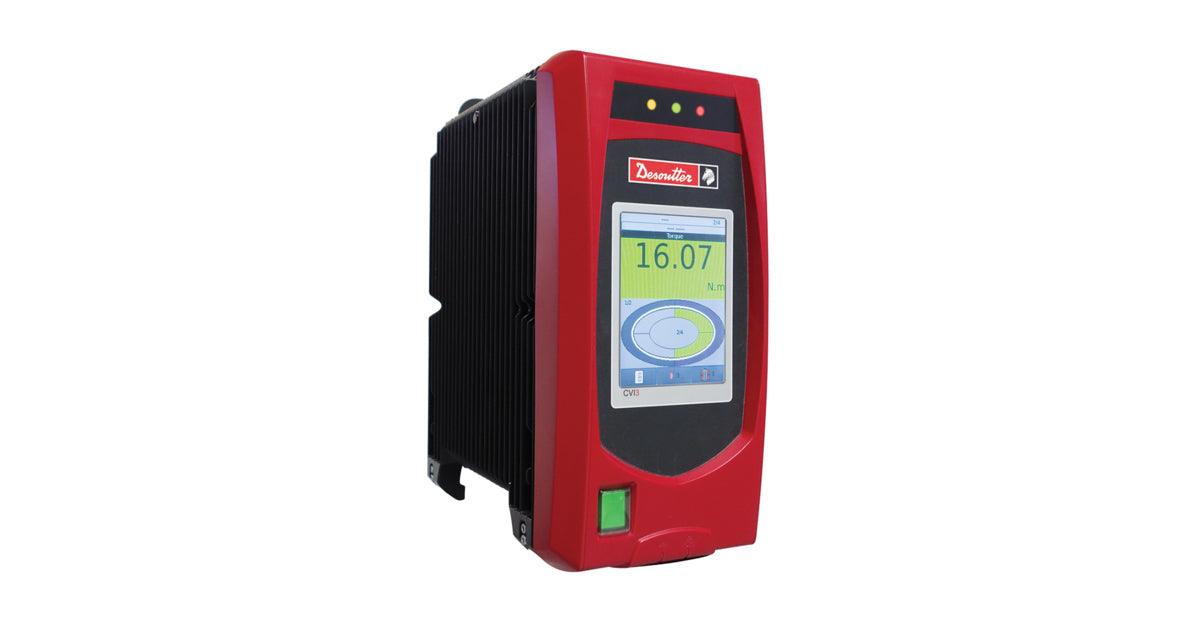

Desoutter CVI3 Advanced Assembly System

From simple tightening to a complete process control

Our close cooperation with the main automotive manufacturers has helped develop the Desoutter CVI3 assembly system. Dedicated to meet the demanding requirements of this industry segment, the CVI3 platform assures the traceability of all the safety critical application processes. The integration of error proofing modules and the wide range of tools offer the flexibility to adapt to each application.

Unique Controller Platform

Each controller has the benefit of sharing the same architecture and design with a global software suite.

Optimize the tightening process

• Network communication : standard fieldbus & advanced customer protocols
• Tightening Strategy : combine flexible steps with different control and different monitoring
• Assembly process : control a complete operation with several tightenings and logics
• Direct visualization and access : simple configuration and results on the controller screen and on a remote HMI

Wide Range of Tools

The CVI3 tools are designed to deliver maximum comfort, high productivity and unmatched flexibility.

The brushless motor combined with the torque transducer is a robust solution. Whatever the shape or connection, you will find the right tool.

Full error proofing

• Thanks to dedicated error proofing accessories on bus communication, the process is 100% reliable and under control.
• Extend your automation control with the CVI Logix features to have a complete stand alone working station thanks to an ePOD module.

Customize to Fit

Special heads, specific shapes and customized machines can be designed to meet all requirements. Furthermore, the use of arms, torque tubes, tool holders and stands will complete the overall installation.

Benefits

• Fast installation and commissioning thanks to the connectivity and the user-friendly interface
• Assembly quality guaranteed with the process control and the error proofing modules
• Reliable and safe with robust tools and hardware backup with the ePOD device
• Ready for your next requirements thanks to upgrade capabilities and tool range flexibility

Increase your productivity in the blink of an eye

Increasing productivity means finding a way to reduce the tact time for the operation. By synchronizing different tightenings, the operation time can be drastically reduced. The TWINCVI3 or the WORKGROUP SYNCHRO allows such operations with easy installation and commissioning. A unique entry point is enough to configure the overall system and to collect the data.

TWINCVI3 Vision

2 tools controlled by a unique controller

Asynchronous Mode

Same features as 2 stand-alone loops with only one access point

Synchronous Mode

Simple integration with no need of additional mechanical or electronic connections, the synchronization is simply done through the software

Benefits

• Small space needed thanks to a compact design for a two cord tool channels solution
• Flexible usage with 2 working modes
• Save the amount of connections and simplify the communication through 1 unique entry point
• Quick to synchronize as all is done through a friendly interface
• Two tools with the same controller

CVI Net Web

Full Data Traceability

Benefits

• All data secured thanks to real time collection and storage
• Accessible by everyone for data viewing with just a web browser
• Fast processing for the results, curves and statistics report in a click

Workgroup System

Up to 14 fixtured spindles controlled in synchronous mode

Benefits

• Flexibility thanks to the use of standard controllers with an additional ePOD device
• Fast commissioning with 1 entry point for the solution
• Synchronization of the controllers via the integrated ethernet network

Bringing all the latest innovations to your assembly line

The EABCom - EPBCom is a highly ergonomic and accurate battery tool for every critical and safety critical applications. It offers a working comfort to operators with its light weight and advanced design, and is able to run a complete shift with its Li-ion battery technology. It integrates easily to the CVI3 Vision controller, supporting the most advanced tightening strategies and communication protocols with your line management system. This cordless tool also offers an excellent level of performance, both on tool speed and on communication ability, which overall makes it the perfect battery tool for your assembly lines.

Advanced Ergonomics

• Low weight tools
• Effortless trigger
• 45° oriented battery (angle version)
• Slim angle head for tight areas access

Optimized Maintenance

• Long life batteries, no memory effect on Li-ion battery
• Dust & oil proof trigger
• Common spare parts with all CVI3 range

Easy Integration

• Quick wireless installation - Directly on an existing CVI3 controller
• Data collection through wireless communication
• Improve error-proofing control with advanced tightening strategies
• Easy attachment for crowfoot & tube nuts

Increased Productivity

• High speed tool and increased autonomy with 36V battery & 2.1 Ah capacity
• Embedded display for pset selection
• Strong & efficient wireless communication, tested in industrial environments

Meet your productivity requirements with Desoutter solutions

The choice of assembly solutions in the automotive industry is strongly influenced by their quality standards. In Desoutter, we propose dedicated solutions for each one of these applications, in order to fulfill all the requirements for the assembly. We give flexibility to the customer with a large tool range both on cord and cordless technologies, we ensure an easy integration within the assembly process, and we guarantee the traceability of all data through our CVI3 controllers.
