Delta Regis Tools Inc.: Inline and Angle Screwdrivers
Add freedom of movement to your assembly process with the new Delta Regis ESB8 Series Cordless Screwdrivers. These drivers utilize the same precision shut-off clutch technology that is the foundation of the Delta Regis Electric Screwdriver product line. High-performance 10.8V Lithium Ion Batteries provide plenty of power and long run times between charging cycles.
Application Tip
When selecting a screwdriver, try to make sure that the specific torque required for the application falls somewhere near the middle of the tools torque range. For example, if you require a torque of 2.4 Nm (21 in-lbs) pick a tool that has a range of 1-4 Nm (8.8-35.4 in-lbs)
Features
• Consistent torque output — Torque accuracy ±3%
• Clean, brushless motor technology
• Dependable, long lifespan
• Two speed selections available
• Lever start, forward/reverse switch
• LEDs and audible indicators alert user to proper clutch activation at shut-off, low battery, and current speed setting
• To conserve battery power, screwdriver enters sleep mode when idle for more than 3 seconds
• Charging station (purchased separately) provides quick recharge time (~45 minutes)
• Includes torque lock sleeve (DR80-ESB823M for ESB823 Series & DR80-20233M for all other models), belt clip, suspension bail, and 2 driver bits (PH #1 + PH #2)

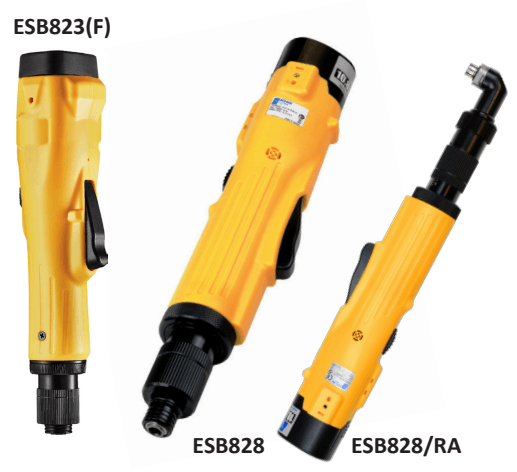

Cordless Inline Models w/ 1/4" Hex Drive:
| Model | Input Voltage | Torque Range (in-lb) | Speed (RPM) | Start Type |
Applicable Battery
|
| ESB824 | 10.8V | 2.7–18 | 1200/850 | Lever Start | ESB-10VL3000 |
| ESB828 | 10.8V | 7.1–27 | 1200/850 | Lever Start | ESB-10VL3000 |
| ESB829 | 10.8V | 13–40 | 700/500 | Lever Start | ESB-10VL3000 |
Cordless Inline Models w/ 1/4" Hex Drive ESD:
| Model | Input Voltage | Torque Range (in-lb) | Speed (RPM) | Start Type |
Applicable Battery
|
| ESB823-ESD | 7.2V | 1.8–10.6 | 500/350 | Lever Start | ESB-7VL3000 |
| ESB823F-ESD | 7.2V | 1.8–10.6 | 1000/700 | Lever Start | ESB-7VL3000 |
| ESB824-ESD | 10.8V | 2.7–18 | 1200/850 | Lever Start | ESB-10VL3000 |
| ESB824P-ESD | 10.8V | 4.4-18 | 1200 | Push Start | ESB-10VL3000 |
| ESB828-ESD | 10.8V | 7.1–27 | 1200/850 | Lever Start | ESB-10VL3000 |
| ESB828P-ESD | 10.8V | 8.8-27 | 1200 | Push Start | ESB-10VL3000 |
| ESB829-ESD | 10.8V | 13–40 | 700/500 | Lever Start | ESB-10VL3000 |
| ESB829P-ESD | 10.8V | 17.7-40 | 700 | Push Start | ESB-10VL3000 |
*ESD Safe Housing helps protect sensitive electronics
Cordless Angle Models w/ 1/4" Hex Drive:
| Model | Input Voltage | Torque Range (in-lb) | Speed (RPM) | Start Type |
Applicable Battery
|
| ESB824/RA | 10.8V | 2.7–14 | 1200/850 | Lever Start | ESB-10VL3000 |
| ESB828/RA | 10.8V | 7.1–21 | 1200/850 | Lever Start | ESB-10VL3000 |
| ESB829/RA | 10.8V | 13–32 | 700/500 | Lever Start | ESB-10VL3000 |
Cordless Angle Models w/ 1/4" Hex Drive with ESD housing:
| Model | Input Voltage | Torque Range (in-lb) | Speed (RPM) | Start Type |
Applicable Battery
|
| ESB824/ESD-RA | 10.8V | 2.7–14 | 1200/850 | Lever Start | ESB-10VL3000 |
| ESB828/ESD-RA | 10.8V | 7.1–21 | 1200/850 | Lever Start | ESB-10VL3000 |
| ESB829/ESD-RA | 10.8V | 13–32 | 700/500 | Lever Start | ESB-10VL3000 |
*ESD Safe Housing helps protect sensitive electronics
Accessories
Batteries
Battery Features
• High-performance Li-ion technology
• Built-in protection prevents battery overcharge and over discharge, extending lifespan
Models:
| Model | Tools | Volts | Rating (mAh) | Dimensions |
| ESB-7VL3000 | ESB823(F) | 7.2V | 3000 | 51 x 44 x 70 mm |
| ESB-10VL3000 | ESB8 Series, BSP8 Series | 10.8V | 3000 | 51 x 46 x 90 mm |
Chargers
Charger Features
• Visual indicators show recharging status
• Audibly notifies user when battery is fully charged
• Full recharge ~40 minutes
Models:
| Model | Battery | Input | Output | Dimensions |
| ESB-CHG25 | ESB-7VL3000 | 100-240V | 8.4V, 3.0A | 145 x 115 x 101 mm |
| ESB-CHG50N | ESB-10VL3000 | 90-240V | 12.6V, 3.75A | 145 x 115 x 93 mm |
For more articles about Delta Regis products Click Here
These are the fliers for the ESB8 Series and for the Inline ESD tools
Contact us for more information or with any questions
