Selecting Your Cleco Nutrunner
Cleco offers over 500 nutrunners, most of which can be equipped with a wide variety of drive options. This generates over 3,000 different nutrunner combinations, allowing the exact tool with precise features to be chosen for specific job applications.
The following items should be considered before selecting the tool: ergonomic factors associated with the man/tool/task relationship, torque and speed requirements, tool and fastener accessibility, fastener joint variations, operator skill level and air supply.
Tool performance can be affected by air supply. Plant air line pressure to the tool will vary widely due to several factors: distance of tool from compressor; size of transmission lines, air drops, manifolds, hose length and diameter, and fittings. All power tool specifications are based on the tool receiving air at 90 p.s.i.g. (6.2 bar) with adequate air flow volume while the tool is in operation.
Clean Operation
Many Cleco angle nutrunners are equipped with oilless blades. This is a very important feature where a clean assembly operation is critical.
Clecomatic Nutrunners
Clecomatic nutrunners shut off the instant the clutch reaches its adjustable preset torque. This action provides an accurate method of controlling torque without sacrificing tool speed. Fluctuating air pressure has little to no effect on torque, as long as the tool receives sufficient pressure from the air supply to trip the clutch.
Stall Nutrunners
Stall-type nutrunners consist of an air motor connected to the output spindle by planetary gearing and angle heads. In operation, the tool runs down the fastener until the torque resistance in the fastener causes the tool to stall. When the tool stalls, the throttle is released by the operator and the tool is removed. Stall-type tools can produce accurate torques, especially on applications with varying torque rates; however, their torque output can be easily influenced by the operator and by fluctuations in the air line pressure. Operators should be instructed to allow the tool to stall before releasing the throttle and to avoid pulling or wrenching the tool after it stalls.

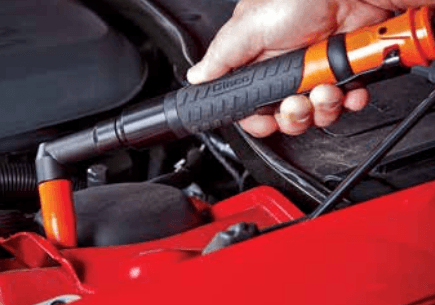

The Cleco Right Angle Solution
The Cleco 19, 24 and 34 series pneumatic nutrunners are the most recent additions to our line of smaller, lighter and faster tools. These powerful right angle clutch tools cover a wide torque range from .5 to 68 NM. We continue to drive our line into the best power to weight ratio of any other tool in the market, in a relentless effort to offer the most performance, the highest level of accuracy and the greatest flexibility in its class of pneumatic tools. We also design our tools to offer you reduced energy costs, longer operating life, fewer replacement parts and lower service costs.
Performance
The Cleco 19, 24 and 34 series right angle nutrunners incorporate an innovative motor design that provides more usable power in a smaller package. This design contributes greatly to our smaller, lighter, faster goals and provides the highest power to weight ratio in its class to date.
Flexibility
Cleco nutrunners come with an externally adjusted and indicated clutch and offer improved ergonomics with a very comfortable handle area. The polymer coated angle heads on the 24 and 34 series reduce in-system damage. These durable heads are splined to allow indexing for better position. The operator will appreciate a quieter tool thanks to the composite exhaust deflector which also allows the exhaust to be efficiently piped away for even further reduced noise levels. These noted improvements are geared towards enhancing the tools positive operational features while reducing operator fatigue.
Repeatability
Our motor design coupled with the improved Clecomatic Clutch, provides capability ratios which meet or exceed global standards. This performance is unheard of until now in a pneumatic clutch tool and is backed by the certification of ISO 5393.
Angle Nutrunners: 19, 24 & 34 Series Clecomatic Clutch
19 Series
■ Torque Range: 05 – 11 Nm 40 – 100 In Lbs
■ Class-leading accuracy and repeatability
■ External torque adjustment
■ Sliding knob reverse
■ 1/4” & 3/8” square drive
24 Series
■ Torque Range: 40 – 23 Nm 30 – 17 Ft Lbs
■ External torque adjustment
■ 3/8” square drive
■ Indexable anglehead
■ One torque spring to meet specified torque
■ Oiless blades
34 Series
■ Torque Range: 80 – 75 Nm 40 – 55 Ft Lbs
■ External torque adjustment
■ 3/8” and 1/2” square drive
■ Indexable anglehead
■ One torque spring to meet specified torque
■ Oiless blades
Angle Nutrunners: 45, 55 & 75 Series Clecomatic Clutch
45 Series
■ Torque Range: 28 – 115 Nm 21 – 85 Ft Lbs
■ Button start
■ Reversible & non-reversible
■ External torque adjustment
■ 1/2” square drive
55 Series
■ Torque Range: 32 – 176 Nm 24 – 130 Ft Lbs
■ Lever start
■ Reversible & non-reversible
■ External torque adjustment
■ Rotating exhaust deflector
■ 1/2” square drive
75 Series
■ Torque Range: 95 – 430 Nm 70 – 320 Ft Lbs
■ Lever start
■ Reversible & non-reversible
■ External torque adjustment
■ Rotating exhaust deflector
■ 1/2” & 3/4” square drive
Angle Nutrunners: 19, 24, 34, 45, 55 & 75 Series Stall – Reversible & Non-Reversible
19 Series Reversible
■ Torque Range: 32 – 62 Nm 23 – 46 Ft Lbs
■ Lever start
■ Sliding knob reverse
24 Series Reversible
■ Torque Range: 13 Nm 96 Ft Lbs
■ Lever start
■ Twist ring reverse
34 Series Reversible
■ Torque Range: 11 - 36 Nm 81 - 26 Ft Lbs
■ Lever start
■ Twist ring reverse
45 Series Reversible
■ Torque Range: 62 - 125 Nm 46 - 92 Ft Lbs
■ Button start
■ Twist ring reverse
55 Series Reversible & Non-Reversible
■ Torque Range: 56 - 203 Nm 41 - 150 Ft Lbs
■ Lever start
■ Reversible & non-reversible
75 Series Reversible & Non-Reversible
■ Torque Range: 210 - 475 Nm 155 - 350 Ft Lbs
■ Lever start
■ Reversible & non-reversible
