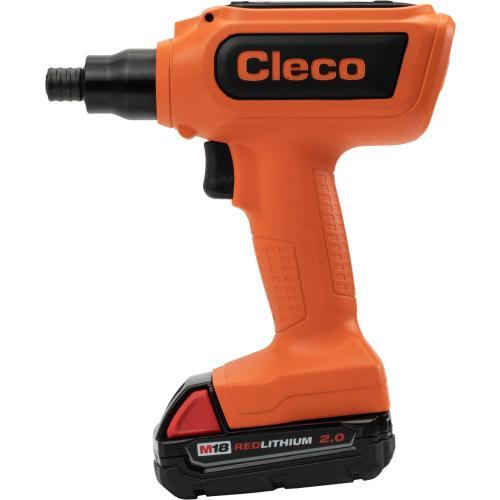

Cleco CellCore Cordless Assembly Tools
CellCore puts you in control with cordless assembly tools that are easy to handle, and hard to break
Cleco’s new CellCore Cordless Assembly Tools are smart, durable and designed to withstand the toughest environments. The lightweight ergonomic design reduces operator fatigue while delivering state-of-the-art power, weight and balance. A large user interface makes it quick and easy to program rundowns on the tool without a controller.
CellCore is the most versatile, easy-to-use cordless tool in the industry.
Users can program up to 10 rundown strategies, called “FastApps”, directly on the tool in standalone mode. Users can also pair CellCore tools with Cleco’s new mPro200 controller. By pairing the devices, users can easily capture data in real time and program advanced rundowns within a much more compact footprint.
The smartest tool for the toughest environment
- Large User Interface - Allows easy on-the tool programming without a controller 10 “Fast Apps” Programmable Rundown Strategies
- Multi-Color LED - Color worklight on the tool for secondary okay/not okay visual feedback
- Increased Storage - No uploading rundowns for up to one week (storage for 15,000 rundowns, 500 traces)
- Exceptional Low Weight, Balance and Grip - For superior ergonomics that increase productivity
- “Stay Alive” Function - Prevents reboot during battery change, gaining time and efficiency
- Versatile - Forward and backward compatibility with Cleco’s entire Global Controller platform
CellCore High Torque
- FastApps - Program up to 10 applications directly on the tool or connect to a controller for maximum functionality
- Versatile - 40-2000Nm range allowing more flexibility in your tool
- Reliable - Norbar® torque multiplier provides proven accuracy and quality
- Access - 360º rotating head and handle for maximum accessibility
Tools
| Model Number | Part Number | Description | Torque Range | Drive Type | RPM | Tool Type | Weight (lbs) |
| CLECO CCBAW353 | CCBAW353 | PROGRAMMABLE TORQUE ANGLE NUTRUNNER Torque Range: 8-26 ft-lbs (10-35 Nm) RPM Max: 255 Drive Size: 3/8" Square Drive | 8-26 ft-lb (11-35 Nm) | 3/8" Square Drive | 255 | Angle | 4.3 |
| CLECO CCBAW253 | CCBAW253 | PROGRAMMABLE TORQUE ANGLE NUTRUNNER Torque Range: 6-18 ft-lbs (7-25 Nm) RPM Max: 305 Drive Size: 3/8" Square Drive | 6-18 ft-lb (8-24 Nm) | 3/8" Square Drive | 305 | Angle | 3.75 |
| CLECO CCBAW503 | CCBAW503 | PROGRAMMABLE TORQUE ANGLE NUTRUNNER Torque Range: 11-37 ft-lbs (15-50 Nm) RPM Max: 165 Drive Size: 3/8" Square Drive | 11-37 ft-lb (15-50 Nm) | 3/8" Square Drive | 165 | Angle | 4.41 |
| CLECO CCBAW153 | CCBAW153 | PROGRAMMABLE TORQUE ANGLE NUTRUNNER Torque Range: 3.3-11 ft-lbs (4.5-15 Nm) RPM Max: 570 Drive Size: 3/8" Square Drive | 3.3-11 ft-lb (4.5-15 Nm) | 3/8" Square Drive | 570 | Angle | 3.75 |
| CLECO CCBPW123 | CCBPW123 | PROGRAMMABLE TORQUE PISTOL SCREWDRIVER Torque Range: 2.7-9 ft-lbs (3.7-12 Nm) RPM Max: 800 Drive Size: 3/8" Square Drive | 2.7-9 ft-lb (3.7-12 Nm) | 3/8" Square Drive | 800 | Pistol | 2.32 |
| CLECO CCBPW04Q | CCBPW04Q | PROGRAMMABLE TORQUE PISTOL SCREWDRIVER Torque Range: 0.8-2.9 ft-lbs (1.1-3.9 Nm) RPM Max: 2480 Drive Size: 1/4" Hex Quick Change | 0.8-2.9 ft-lb (1.1-3.9 Nm) | 1/4" Hex Drive (Quick-Change Chuck) | 2480 | Pistol | 2.16 |
| CLECO CCBPW22Q | CCBPW22Q | PROGRAMMABLE TORQUE PISTOL SCREWDRIVER Torque Range: 4.9-16 ft-lbs (7-22 Nm) RPM Max: 430 Drive Size: 1/4" Hex Quick Change | 4.9-16 ft-lb (7-22 Nm) | 1/4" Hex Drive (Quick-Change Chuck) | 430 | Pistol | 2.32 |
| CLECO CCBPW223 | CCBPW223 | PROGRAMMABLE TORQUE PISTOL SCREWDRIVER Torque Range: 4.9-16 ft-lbs (7-22 Nm) RPM Max: 430 Drive Size: 3/8" Square Drive | 4.9-16 ft-lb (7-22 Nm) | 3/8" Square Drive | 430 | Pistol | 2.32 |
| CLECO CCBPW12Q | CCBPW12Q | PROGRAMMABLE TORQUE PISTOL SCREWDRIVER Torque Range: 2.7-9 ft-lbs (3.7-12 Nm) RPM Max: 800 Drive Size: 1/4" Hex Quick Change | 2.7-9 ft-lb (3.7-12 Nm) | 1/4" Hex Drive (Quick-Change Chuck) | 800 | Pistol | 2.32 |
| CLECO CCBAWN750NB6 | CCBAWN750NB6 | PROGRAMMABLE TORQUE HIGH TORQUE ANGLE NUTRUNNER Torque Range: 114-553 ft-lbs (154-750 Nm) RPM Max: 11 Drive Size: 3/4" Square Drive | 114-553 ft-lb (155-750 Nm) | 3/4" Square Drive | 11 | High Torque Angle | 11 |
| CLECO CCBAWN1000NB6 | CCBAWN1000NB6 | PROGRAMMABLE TORQUE HIGH TORQUE ANGLE NUTRUNNER Torque Range: 148-738 ft-lbs (200-1000 Nm) RPM Max: 7 Drive Size: 3/4" Square Drive | 148-738 ft-lb (201-1001 Nm) | 3/4" Square Drive | 7 | High Torque Angle | 11 |
| CLECO CCBAWN225NB6 | CCBAWN225NB6 | PROGRAMMABLE TORQUE HIGH TORQUE ANGLE NUTRUNNER Torque Range: 33-166 ft-lbs (45-225 Nm) RPM Max: 34 Drive Size: 3/4" Square Drive | 33-166 ft-lb (45-225 Nm) | 3/4" Square Drive | 34 | High Torque Angle | 10.3 |
| CLECO CCBPWN500D6 | CCBPWN500D6 | PROGRAMMABLE TORQUE HIGH TORQUE PISTOL SCREWDRIVER Torque Range: 88-369 ft-lbs (119-500 Nm) RPM Max: 14 Drive Size: 3/4" Square Drive | 88-369 ft-lb (119-500 Nm) | 3/4" Square Drive | 14 | High Torque Pistol | 7.41 |
| CLECO CCBPWN200D6 | CCBPWN200D6 | PROGRAMMABLE TORQUE HIGH TORQUE PISTOL SCREWDRIVER Torque Range: 30-144 ft-lbs (40-195 Nm) RPM Max: 42 Drive Size: 3/4" Square Drive | 30-144 ft-lb (41-195 Nm) | 3/4" Square Drive | 42 | High Torque Pistol | 14.73 |
| CLECO CCBPWN2000D8 | CCBPWN2000D8 | PROGRAMMABLE TORQUE HIGH TORQUE PISTOL SCREWDRIVER Torque Range: 322-1475 ft-lbs (436-2000 Nm) RPM Max: 4 Drive Size: 1" Square Drive | 322-1475 ft-lb (437-2000 Nm) | 1" Square Drive | 4 | High Torque Pistol | 14.73 |
| CLECO CCBPWN1350D8 | CCBPWN1350D8 | PROGRAMMABLE TORQUE HIGH TORQUE PISTOL SCREWDRIVER Torque Range: 216-996 ft-lbs (293-1350 Nm) RPM Max: 6 Drive Size: 1" Square Drive | 216-996 ft-lb (293-1351 Nm) | 1" Square Drive | 6 | High Torque Pistol | 14.73 |
| CLECO CCBPWN1000D6 | CCBPWN1000D6 | PROGRAMMABLE TORQUE HIGH TORQUE PISTOL SCREWDRIVER Torque Range: 158-738 ft-lbs (214-1000 Nm) RPM Max: 8 Drive Size: 3/4" Square Drive | 158-738 ft-lb (214-1001 Nm) | 3/4" Square Drive | 8 | High Torque Pistol | 14.73 |
Accessories
| Model Number | Part Number | Description | Volts | Amp Hrs | Weight (lbs) |
| 18V LI-ION RAPID CHARGER | Cleco 48-59-1802 | M18™ Dual Bay Simultaneous Rapid Charger | 18V | 6 Ah (output) | 3.54 |
| 12V & 18V LI-ION STANDARD CHARGER | Cleco 48-59-1812 | M18™ & M12™ Multi-Voltage Charger | 12V and 18V | 2.5 Ah (output) | 2.01 |
| 12V & 18V LI-ION SUPER CHARGER | Cleco 48-59-1811 | M18™ & M12™ Super Charger | 12V and 18V | 3.38 | |
| 18V 2Ah LI-ION BATTERY | Cleco 48-11-1820 | M18™ REDLITHIUM™ CP2.0 Battery | 18V | 2 Ah | 1.54 |
| 18V 3Ah LI-ION BATTERY | Cleco 48-11-1835 | M18™ REDLITHIUM™ HIGH OUTPUT™ CP3.0 Battery | 18V | 3 Ah | 1.54 |
| 18V 4Ah LI-ION BATTERY | Cleco 48-11-1840 | M18™ REDLITHIUM™ XC 4.0 Extended Capacity Battery Pack | 18V | 4 Ah | 1.54 |
| 18V 5Ah LI-ION BATTERY | Cleco 48-11-1850 | M18™ REDLITHIUM™ XC5.0 Extended Capacity Battery Pack | 18V | 5 Ah | 1.54 |
