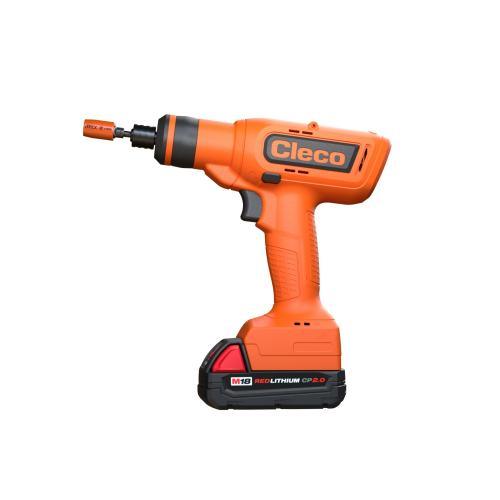

Cleco: CellClutch Cordless Assembly Tools
CellClutch Cordless Assembly Tools deliver simple, programmable torque control to your line.
Simplicity and intelligence merge with our newest innovation in cordless tools. CellClutch delivers torque control for functional joints, programmable with up to 7 stages to prevent cross-thread errors, has RPM speed control, and provides repeatability and fastening accuracy during the assembly tightening process.Â
Eliminate Over Torque DamageÂ
Contactless electronic switch shuts off tightening rotation when required torque is reached.
Reduced Operator ErrorÂ
Pre-set torque, “ok” “not ok” green and red lights make tool operation simple. Eliminate cross threads and errors during rundowns with programmable speeds and strategies.
Reliable Single Battery PlatformÂ
Milwaukee M18 Red Lithium battery can be used across the entire Cleco cordless range to reduce complexity and costs in your plant.
Powered by the Milwaukee M18 Red Lithium battery platform and available in WiFi/Bluetooth® connected versions, CellClutch tools can seamlessly communicate with the Cleco mPro line of controllers using both WiFi (2.4 & 5 GHz) and Bluetooth v4.2 (Low Energy and BR/EDR) wireless communication in a single convenient tool. With CellClutch, tool intelligence has never been so simple.
Quick Tool InstallationÂ
Setting the preferred torque is a quick and easy 3-step process: Complete a rundown, read the torque and make adjustments, complete another rundown to verify required torque is met.
Software Included at No Extra ChargeÂ
Reduce total cost of ownership with CellClutch software included with tool purchase.
Connected Advantage (WIRELESS)
WiFi (2.4 & 5 GHz) and Bluetooth v4.2 (Low Energy and BR/EDR) wireless communication for easy-to-program setting adjustments, live reporting, traceability, and batch counting through the mPro controller platform. Operators can effortlessly switch RPM settings to match changing requirements, while the built-in LED work light improves visibility and reduces strain in low-light areas.
- Available in Connected version only, mPro controller sold separately.Â
AccuracyÂ
Accuracy - Cmk > 1.67 +/- 10%
Speed ControlÂ
Easily change the tool’s RPM settings to meet the required application requirements.
ErgonomicÂ
Lightweight, cordless design eliminates the need for bulky cords and hoses.
Improved VisibilityÂ
Built-in LED work light illuminates the work surface to reduce strain.
 Clutches
All tools have shut-off ClutchesÂ
Shut-off Clutch Tools
| Model Number | Torque Range | Drive Type | RPM | Tool Type | Weight (lbs) |
| CLECO CLBA403 | 11-30 ft-lb (15-41 Nm) | 3/8" Square Drive | 19-190 | Angle | 4 |
| CLECO CLBA303 | 6-22 ft-lb (8-30 Nm) | 3/8" Square Drive | 26-255 | Angle | 3.8 |
| CLECO CLBA123 | 2.4-9 ft-lb (3.3-12 Nm) | 3/8" Square Drive | 65-650 | Angle | 3.2 |
| CLECO CLBA653 | 14-48 ft-lb (19-65 Nm) | 3/8" Square Drive | 12-115 | Angle | 4.75 |
| CLECO CLBA083 | 1.5-6 ft-lb (2-8 Nm) | 3/8" Square Drive | 92-915 | Angle | 3.2 |
| CLECO CLBA203 | 6-16 ft-lb (8-22 Nm) | 3/8" Square Drive | 36-360 | Angle | 3.8 |
| CLECO CLBP04Q | 2.4-9 ft-lb (3.3-12 Nm) | 1/4" Hex Drive (Quick-Change Chuck) | 177-1770 | Pistol | 2.3 |
| CLECO CLBP12Q | 1.5-6 ft-lb (2-8 Nm) | 1/4" Hex Drive (Quick-Change Chuck) | 70-700 | Pistol | 2.3 |
| CLECO CLBP08Q | 0.8-2.9 ft-lb (1.1-3.9 Nm) | 1/4" Hex Drive (Quick-Change Chuck) | 95-985 | Pistol | 2.3 |
Wireless Products
| Model Number | Torque Range | Drive Type | RPM | Tool Type | Weight (lbs) |
| CLECO CLBAW123 | 2.4-9 ft-lb (3.3-12 Nm) | 3/8" Square Drive | 65-650 | Angle | 3.2 |
| CLECO CLBAW203 | 6-16 ft-lb (8-22 Nm) | 3/8" Square Drive | 36-360 | Angle | 3.8 |
| CLECO CLBAW653 | 14-48 ft-lb (19-65 Nm) | 3/8" Square Drive | 12-115 | Angle | 4.75 |
| CLECO CLBAW303 | 6-22 ft-lb (8-30 Nm) | 3/8" Square Drive | 26-255 | Angle | 3.8 |
| CLECO CLBAW083 | 1.5-6 ft-lb (2-8 Nm) | 3/8" Square Drive | 92-915 | Angle | 3.2 |
| CLECO CLBAW403 | 11-30 ft-lb (15-41 Nm) | 3/8" Square Drive | 19-190 | Angle | 4 |
| CLECO CLBPW04Q | 2.4-9 ft-lb (3.3-12 Nm) | 1/4" Hex Drive (Quick-Change Chuck) | 177-1770 | Pistol | 2.3 |
| CLECO CLBPW12Q | 1.5-6 ft-lb (2-8 Nm) | 1/4" Hex Drive (Quick-Change Chuck) | 70-700 | Pistol | 2.3 |
| CLECO CLBPW08Q | 0.8-2.9 ft-lb (1.1-3.9 Nm) | 1/4" Hex Drive (Quick-Change Chuck) | 95-985 | Pistol | 2.3 |
Batteries and Chargers
| Model Number | Part Number | Description | Volts | Amp Hrs | Weight (lbs) |
| 18V LI-ION RAPID CHARGER | Cleco 48-59-1802 | M18™ Dual Bay Simultaneous Rapid Charger | 18V | 6 Ah (output) | 3.54 |
| 12V & 18V LI-ION STANDARD CHARGER | Cleco 48-59-1812 | M18™ & M12™ Multi-Voltage Charger | 12V and 18V | 2.5 Ah (output) | 2.01 |
| 12V & 18V LI-ION SUPER CHARGER | Cleco 48-59-1811 | M18™ & M12™ Super Charger | 12V and 18V | 3.38 | |
| 18V 2Ah LI-ION BATTERY | Cleco 48-11-1820 | M18™ REDLITHIUM™ CP2.0 Battery | 18V | 2 Ah | 1.54 |
| 18V 3Ah LI-ION BATTERY | Cleco 48-11-1835 | M18™ REDLITHIUM™ HIGH OUTPUT™ CP3.0 Battery | 18V | 3 Ah | 1.54 |
| 18V 4Ah LI-ION BATTERY | Cleco 48-11-1840 | M18™ REDLITHIUM™ XC 4.0 Extended Capacity Battery Pack | 18V | 4 Ah | 1.54 |
| 18V 5Ah LI-ION BATTERY | Cleco 48-11-1850 | M18™ REDLITHIUM™ XC5.0 Extended Capacity Battery Pack | 18V | 5 Ah | 1.54 |
