Rexroth Angle compensation function

FUNCTIONALITY

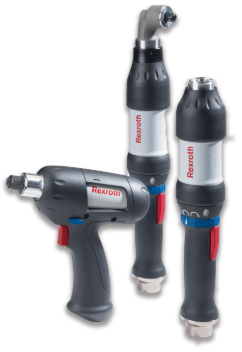

• Functionality available for all new ErgoSpin hand-held nutrunners
• Compensation of worker movement with triaxial sensors in real-time
• Measurement and output of the programmed actual angle of turn values
• Improvement of the joint quality especially in connection with angle-controlled target functions
• No alignment of the Bosch gyro sensor required thanks to triaxial sensor system

LICENSE STICK

The angle compensation function is available for the Rexroth Tightening System 350 from software version V2.500 upwards. Activating the angle compensation function requires a license, which is available on a license stick. Each license stick contains exactly one license for a tightening channel. The license stick must be plugged into the corresponding control unit (interface X3U1, X3U2) for the function to be executed.
