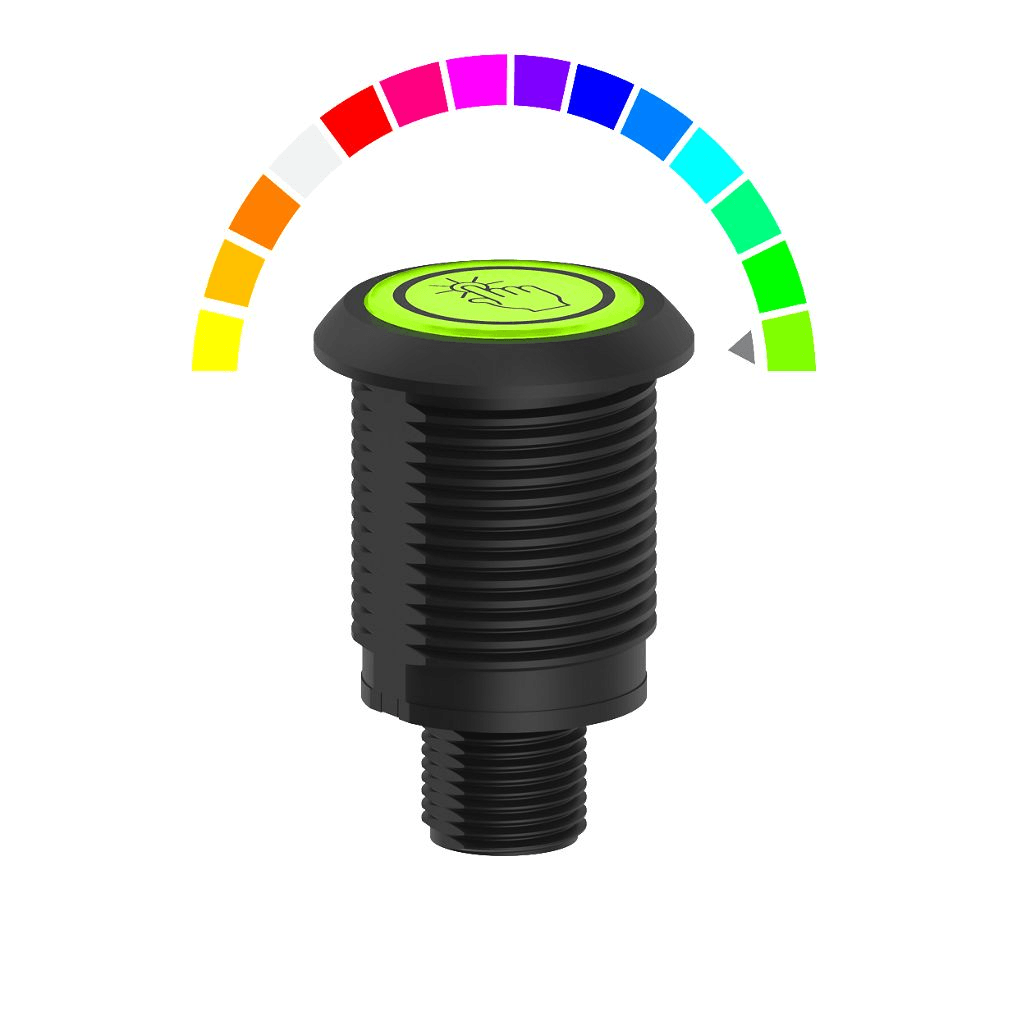

Banner: S22 Pro Touch Series 22 MM PROGRAMMABLE MULTICOLOR PICK-TO-LIGHT TOUCH BUTTONS
The S22 Touch Series is a versatile family that combines a bright indicator with solid-state switching capability activated by a simple touch. Ideal for lean manufacturing and bin-picking operations. The 22 mm multicolor RGB flush mount touch button has independent momentary or latching touch button output.
- Bright LED indicators combined with touch-activated switching capabilities
- Programmable using Banner's Pro Editor Software and Pro Converter Cable for customization of colors and animation
- Rugged, cost-effective, and easy-to-install multicolor indicator with touch button
- Solid state electronics for long lifetime and reduced maintenance
- Waterproof IP69 construction for washdown environments
- Up to seven independent colors in one unit
- 22 mm threaded polycarbonate base
- Ergonomically designed to eliminate hand, wrist, and arm stresses
- Can be actuated with bare hands or gloves
- 10 V dc to 30 V dc operation
- Bimodal inputs and outputs (PNP/NPN), depending on source wiring
- Terminal connector options for fast, economical installation in panels
