Banner: Pick-to-Light Solutions Kit (SOLUTIONSKIT-PTL) #808452

Quick Start Guide

The Pick-to-Light Solutions Kit for improved productivity in picking systems is an easy-to-use solution to reduce error during the assembly process. It comes with a pre-programmed DXM700 and HMI with touch screen for pick-to-light system setup and integration. The Pick-to-Light Solutions Kit harnesses the power of all models of PICK-IQ™ devices, is simple to mount and install, and solves more applications with flexible pick functionality. Functionality is divided into the following categories:
Device Identification
View and update device IDs.
Recipe Setup
Create pick recipes by interactively touching the devices in their pick order. Recipes can also be entered using the touch
screen.
Recipe Execution
Execute and change between recipes.

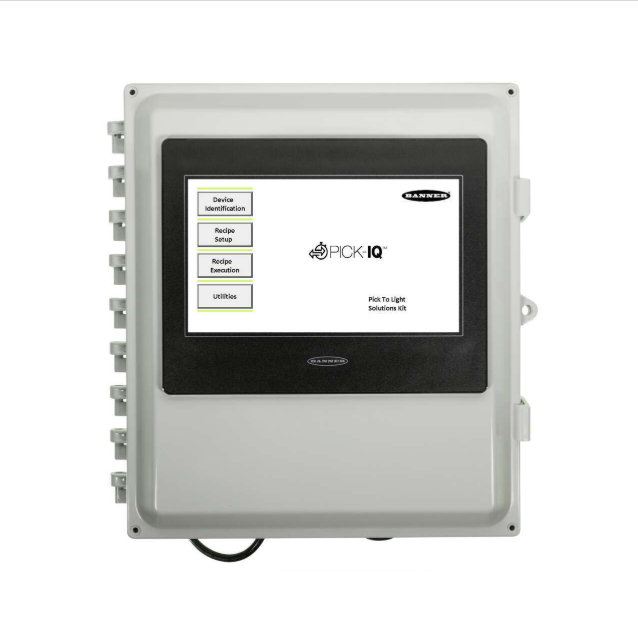

Pick-to-Light Solutions Kit

14 in x 12 in Polycarbonate Enclosure
DXM700 (Pre-programmed for Pick-to-Light Integration)
10 in Pre-programmed Color Touchscreen HMI
12-30 V dc
Part Number: 808452

Specifications:

Ships With Battery	No
Power	DC
Primary Housing Material	Polycarbonate
PICK-IQ (Modbus RTU)	Yes
Application: Pick-to-Light	Yes
EtherNet/IP	Yes
Modbus RTU	Yes
Modbus/TCP	Yes
RS-485	Yes
Outside Housing Dimensions (cm)	39.13 x 34.05 x 18.29
Max Op. Temperature (°C)	50
Tree Topology	No
Star Topology	No
Relative Humidity	90% at 50° C
Point-to-Point Topology	No
Point-to-Multipoint Topology	No
Resolution (pixels)	1024 x 600
Display Size (cm)	25.65
Inside Housing Dimensions (cm)	35.56 x 30.48 x 15.24
Screen Type	Standard Touch Control Panel
Voltage	24 V dc
