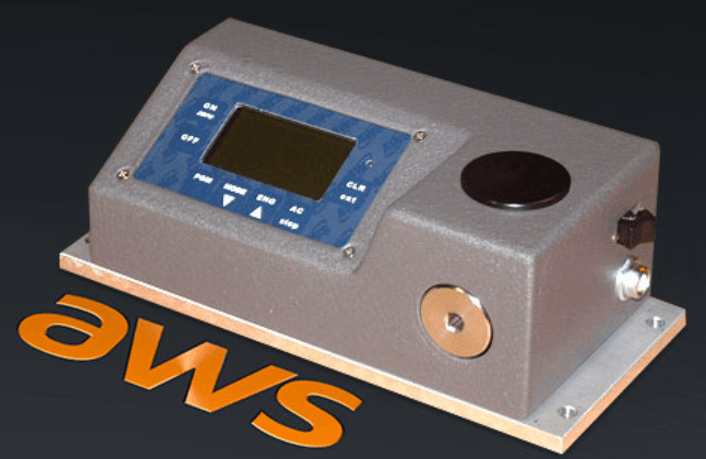

The AWS-5000 Intellect Desktop Torque Tester provides calibration, assembly, and tool room personnel with the best solution for verifying the accuracy of dial, beam, and click type torque wrenches. This tester easily tests most power tools except pulse and impact type tools.

The AWS-5000 provides automatic recognition of any intellect style transducer in ranges from 10 Oz.in. to 5,000 Lb.ft. With the addition of a 6-way switch box, the tester can be connected up to six external transducers at the same time.

Internal transducer models are available in vertical or horizontal configurations. Accuracy is 0.25% of indicated reading, top 90% of transducer's range. AWS offers a full range of external transducers with integrated bench stands.

Features

• Single-step access to all functions.
• Plug & Play: Auto-recognition of up to seven transducers.
• Memory storage for 999 data points.
• Serial output.
• Visual limit alarms.
• Selectable power tool filtering speeds: 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz.
• Virtually any manufacturer's strain gauge transducers can be configured to work with this tester.
• Rundown fixtures available through 7,500 Lbf Ft.
• For testing click, dial, and digital wrenches, plus most power tools except pulse and impact type tools.

Specifications
