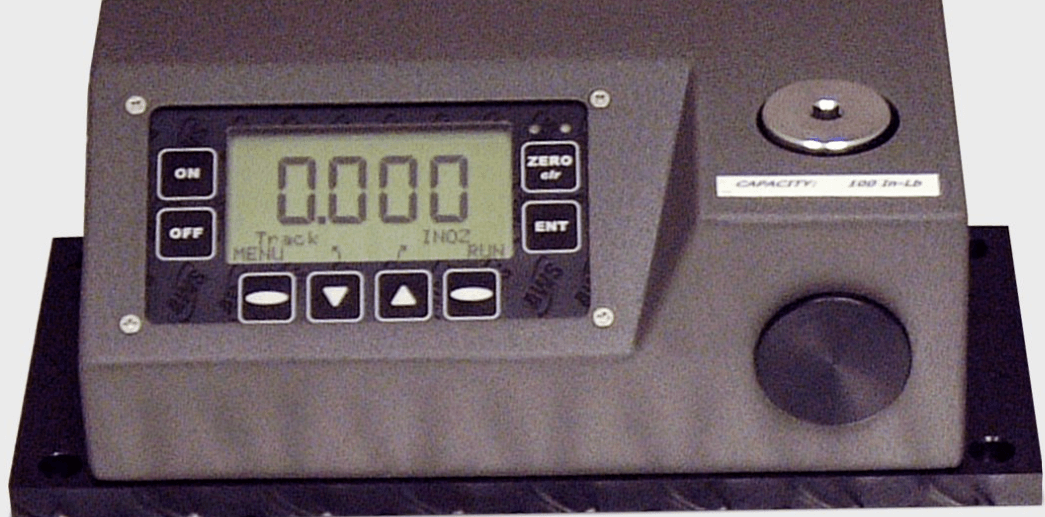

AWS: AWS-3000 Desktop Torque Tester

AWS: AWS-3000 Desktop Torque Tester

Because of their great value, low cost, high quality, and ease of use, the AWS-3000 series are our most popular desktop tester. When used in conjunction with one of our PC applications, it's also capable of being used for tools test management, data archiving, or printing.


Rundown Fixtures
1/4" and 3/8" rundown fixtures (up to 1000 Lbf In) are included, 1/2", 3/4" and larger rundown kits are available but they are optional and priced separately. View Rundown Fixtures

Features

  • Bidirectional capability to test torque in CW and CCW directions.
  • Welded steel housing.
  • Designed to facilitate hand or power tool testing.
  • Designed for vertical or horizontal orientation.
  • Intuitive user interface.
  • Same feature set as our other AWS instruments, including Peak, First Peak and Track modes, upper and lower limits, memory and serial data output.

Specifications

Accuracy: ±0.5% of indicated reading, top 90% of range.
Multiple Engineering Units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
Batteries: Rechargeable NiMH batteries provide 10-12 hours of continuous use
Dimensions: 3" x 4.5" x 8.5"
Weight: 4 lbs.
Display: Segmented, four active digits with menus

Options

AWS-3000 with Int/Ext

This option provides the means to add additional external transducers to this system, allowing the user to expand the testing or certification capability at a very low cost. Any of our AWS Intellect transducers can be connected to the 3000.

Contact us for more information
